DK-98-IIA means:PID Microprocessor digital temperature controller.
Note:We can produce the water bath as customer requirement.
●Cold-rolling steel spraying exterior.
●Stainless steel Inner tank and cover.
●Intelligent Temperature control instrument adopts PID control,
dual digital display ,with functions of timing of operation(0-9999min),
fixed value operation,automatically stop、realization of over-
temperature alarm,power-off compensation、power failure memory,
error correction and Menu lock.
Main Technical Parameters

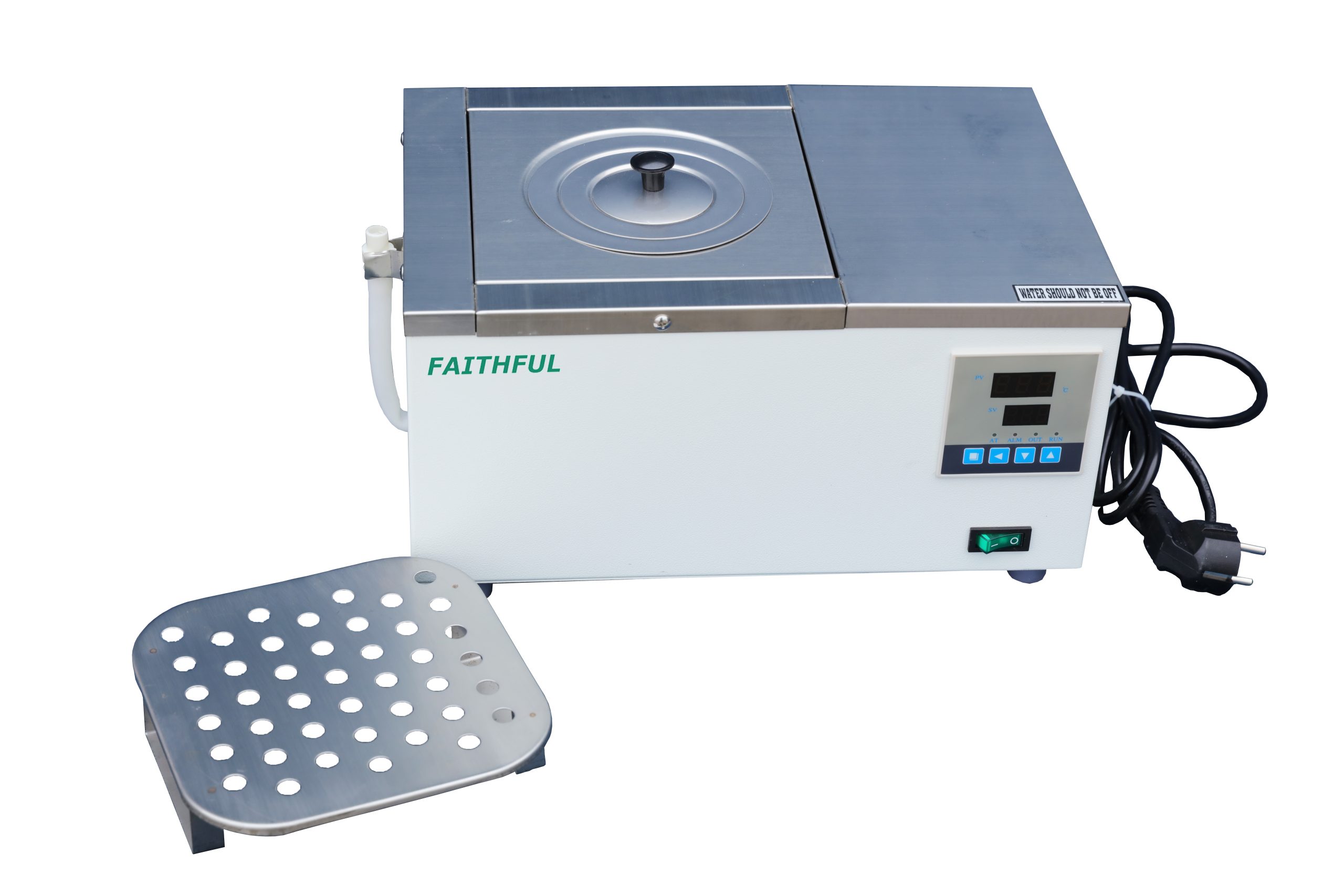

| Model | DK-98- (II)A 1 hole |
DK-98- (II)A 1 row & 2 holes |

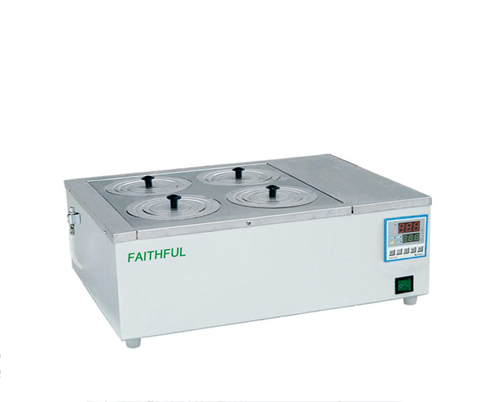

DK-98- (II)A 1 row& 4 holes |

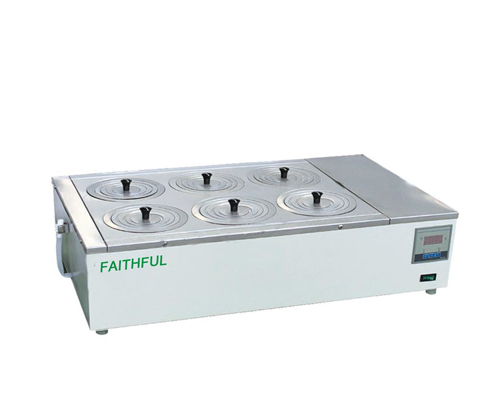

DK-98- (II)A 1 row & 6 holes |
DK-98- (II)A 2 rows & 4 holes |
DK-98- (II)A 2 rows & 6 holes |

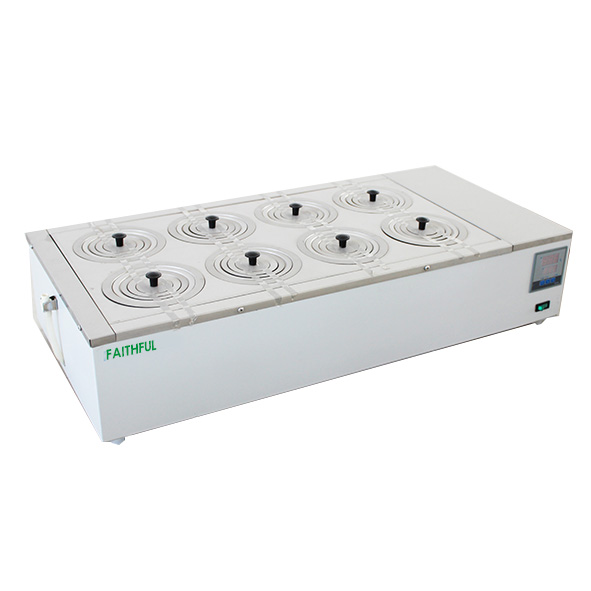

DK-98- (II)A 2 rows & 8 holes |
| Voltage | 200-240V/100-120V | ||||||
| Power(W) | 400 | 500 | 1000 | 1500 | 1000 | 1500 | 2000 |
| Tem- motion (℃） |
±0.5℃ | ||||||
| Tem- range (℃) |
Room Temp.+5~100℃ | ||||||
| Tem- Sensitivity (℃） |
≤±1℃ | ||||||
| Display error（℃） |
≤±2.5℃ | ||||||
| Chamber Size (mm) |
168*168 *120 |
325*168 120 |
653*168 *120 |
945168 *120 |
325*325 *120 |
480*325 *120 |
635*325 *120 |
| Products Size (mm) |
360*240 190 |
510*240 *190 |
830*380 *190 |
1100*250 *215 |
510*380 *190 |
670*380 *190 |
830*380 *190 |
| Packing Size (mm) |
400*320 *235 |
555*320 *230 |
865*320 *235 |
1170*320 *230 |
550*475 *235 |
715*475 *235 |
870*480 *235 |
| N.W.(KG) | 3.3 | 5 | 7 | 12 | 6.5 | 8.6 | 9 |
| G.W.(KG) | 4.3 | 6.5 | 8 | 14 | 7.7 | 9.3 | 10 |
