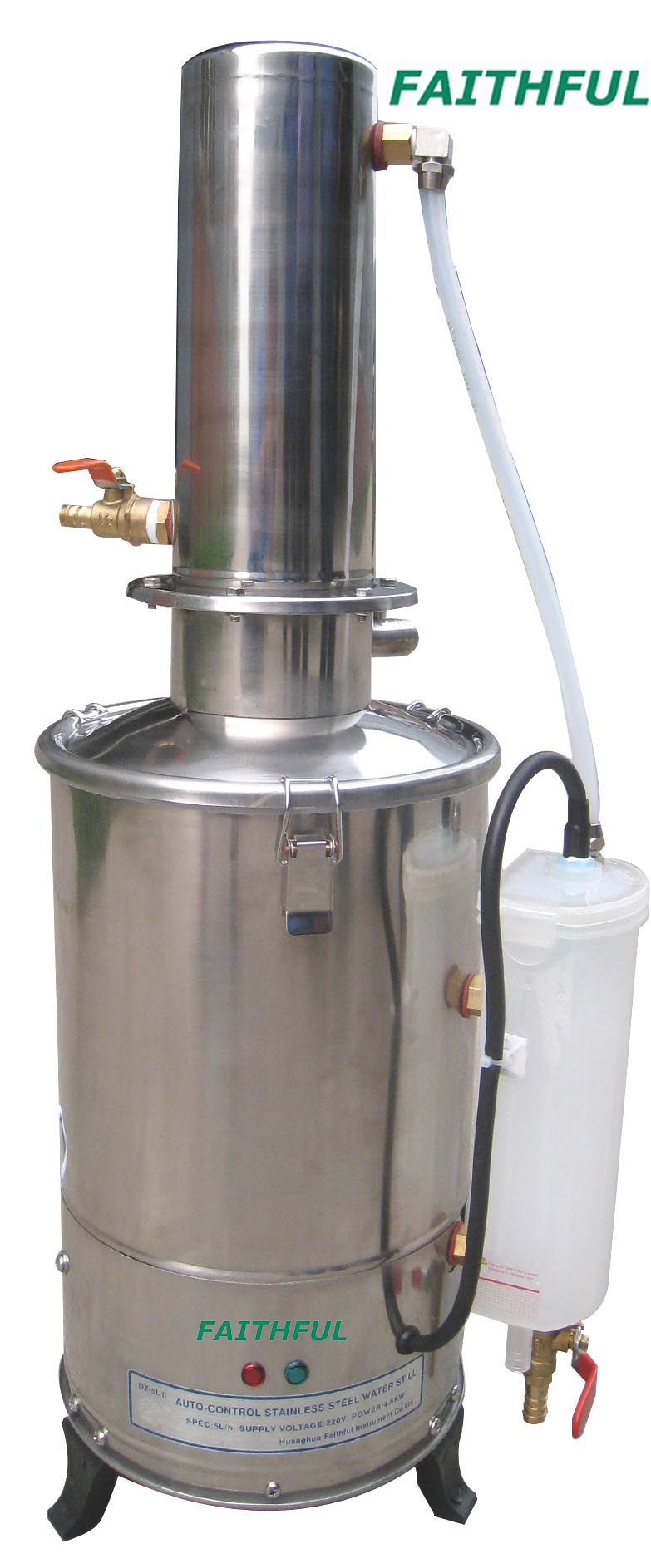

•1 .The whole shell is designed in stainless steel, and the evaporation tank, condenser and heater are all made of stainless steel, which are resistant to corrosion and aging.
•2.With water shortage protection function, when the liquid level is too low, it will automatically alarm and quickly cut off the heating, to ensure that the heater will not burn out, it is easy to operate, safe and reliable.
•3.Automatic water replenishment function, when the cooling water is restored to supply water, it will automatically enter the evaporation bucket, to ensure that the float switch automatically controls the power supply, and automatically restore the output of distilled water.
Main Technical Parameters
| Type | Model | Voltage (V) |
Output (L/H) |
Heating Power (w) | N.W / G.W (kg) |
Exterior Size (Dia *H) mm |
Packing Size (L*W*H) mm |

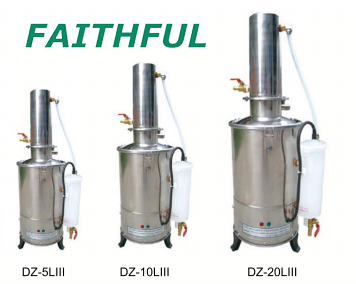

| Auto- control | DZ-5LIII | 220 | ≥ 5 | 4.5 | 6/9.5 | φ305*730 | 380*350*870 |
| DZ-10LIII | 380 | ≥ 10 | 7.5 | 7.5/10.5 | φ335*830 | 390*350*900 | |
| DZ-20LIII | 380 | ≥ 20 | 15 | 11/13.5 | φ405*980 | 410*410*1055 |
