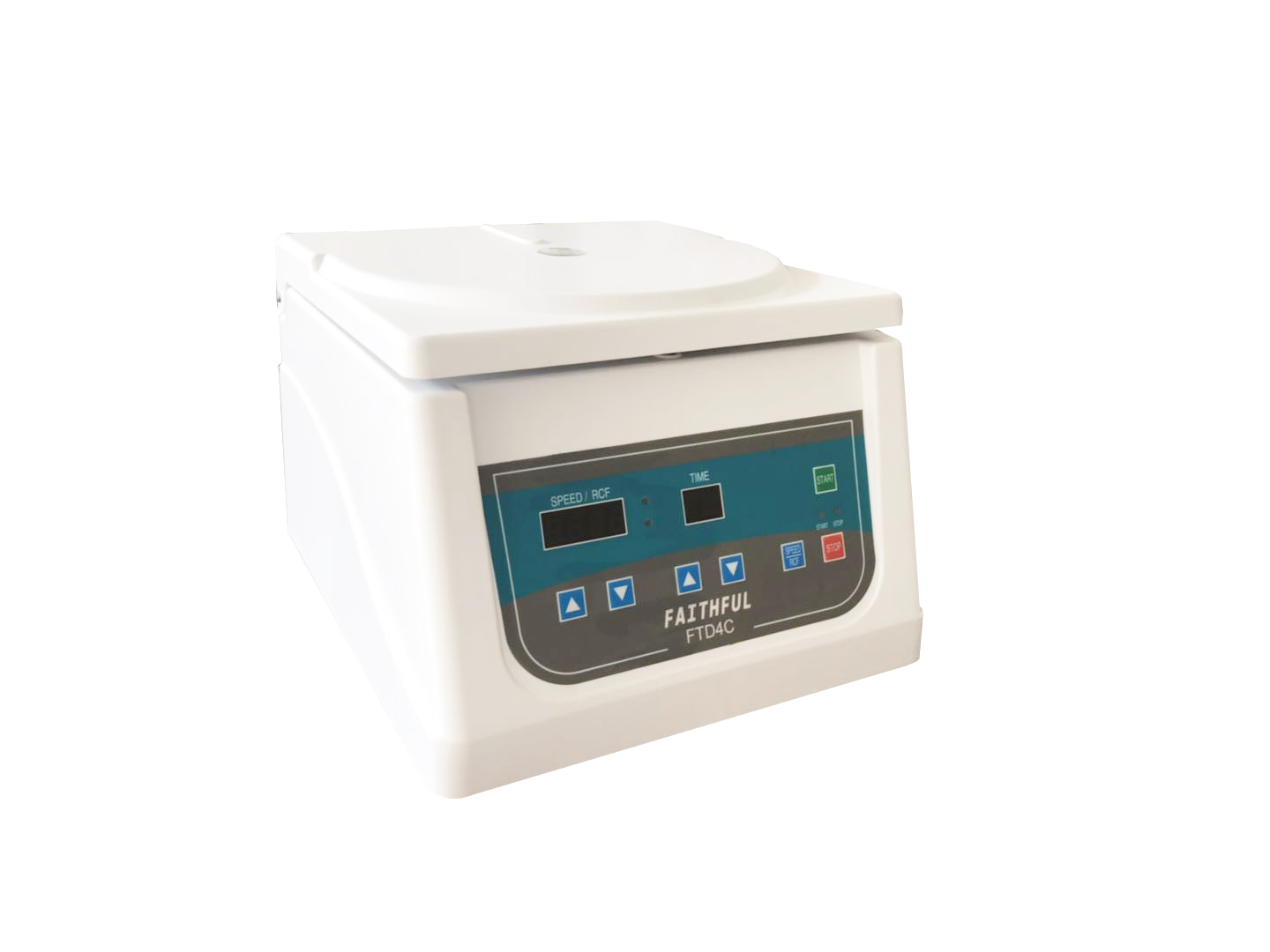

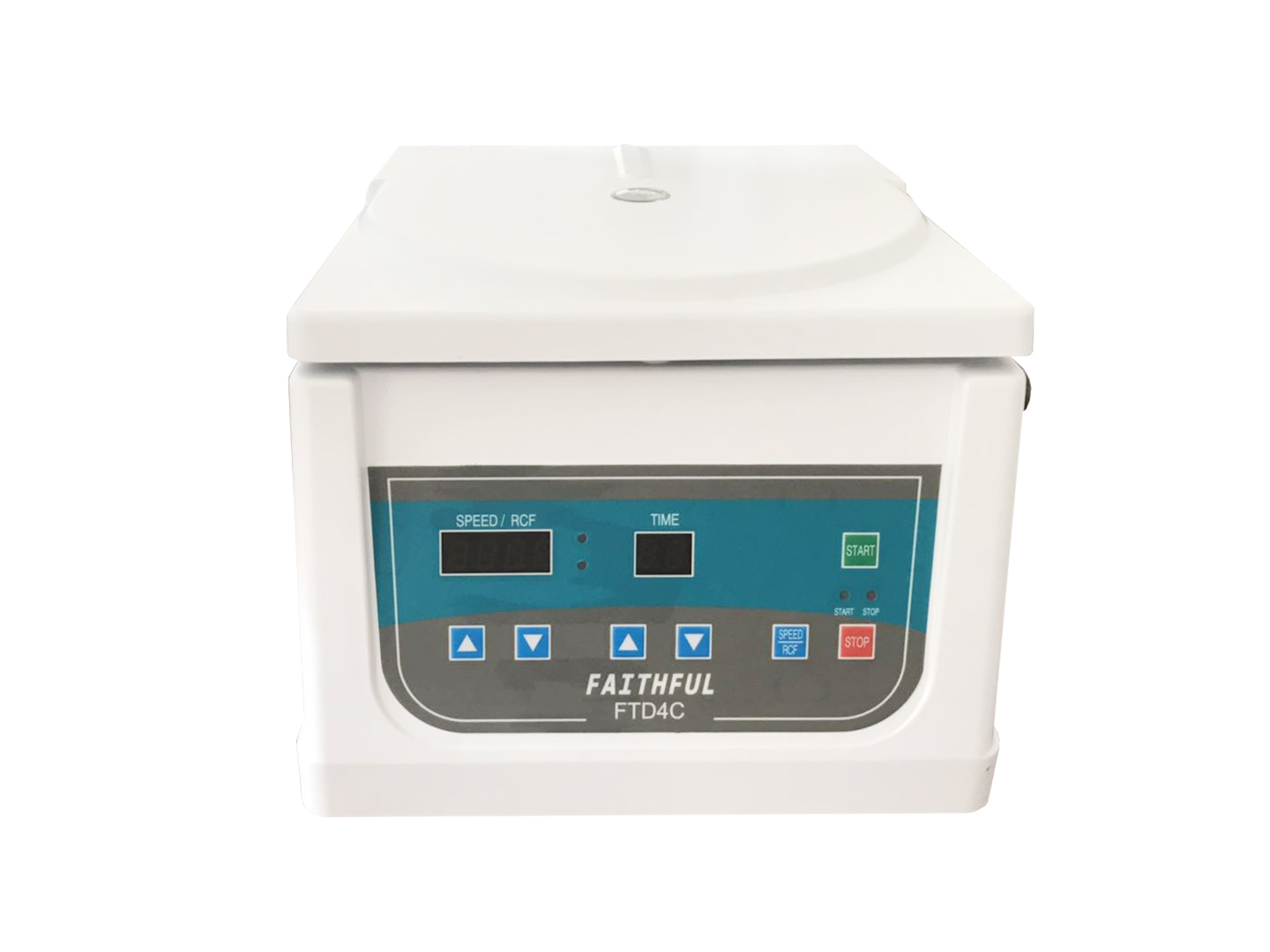

Introduction

Technical Parameter

Maxinnum running speed: 4000r/min

Maximum centrifugal: 2350Xg

Rotor capacity for maximum speed: 12 × 15ml

Maximum capacity: 12 × 15ml

Rotor speed for maximum capacity: 4000r/min

Noise: ≤55dB

Power supply: AC220V 50Hz 5A

Relative humidity: ≤85%

Ambient temp: 5℃~30℃

Overall dimension: 270 × 290 × 230mm

Packing size：350 × 340 × 360mm

N.W/G.W（kg）：8/9

Main Construction and Feature

The centrifuge consists of carcass, driving component, rotor, electric control component, and refrigerating component of compressor unit etc. It is driven directly by direct current brushless motor, and made damped vibration attenuation with special dampener, there for which is of small vibration and low noise, and is of high control precision of rotating speed and time with module control.

Mating Rotor
Mating rotor table
( Please order otherwise when user has special requirement. )

Model	Name	Maxi.speed (r/min)	Maxi. centrifugal	Maxi.capacity	Remarks
NO.1	Angular rotor	4000	2350Xg	12×15ml	－－

The rotor of the machine is mated according to order requiretnent and

operated according to set parameter.

InstaIIation Requirement
1.Installing position should select the strong flat and prevent the influence of external vibration to the machine.

2.Prevent the sunlight from direct irradiation. Indoor should be siccity and cleaning
3.Distance iörm the machine to wall should be more than
4.Installing rotor. and Inaking location and fastening.
5.Power supply should be one-way 22V.
Electric Plug capacity should be no less than Individual earth wire should be firmly connected.
