Unique Features

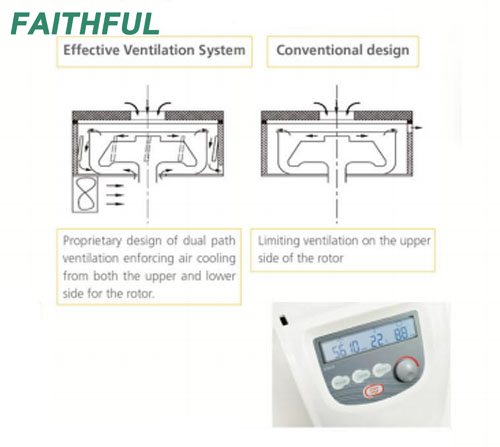

• Special multi-flow air cooling design with patent ensures fast cooling of the rotor and low energy consumption
• Unique temperature display appropriate for gentle handling of sensitive samples
• Bio-safe rotor/anti-sample overflow prevents accidental leakage during centrifugal process allowing risk-free microbial contamination
• High strength aluminum alloy rotor can be fully autoclaved for unlimited service life
• Four rotors are optional complete with 24 places 1.5/2.0mL tubes, bigger 5.0mL, smaller 0.2mL and 0.5mL tubes with adapters
Main Technical Parameters
| Specifications | FD3024 |
| Max. Speed | 15000rpm(200-15000rpm), increment:10rpm |
| Max. RCF | 21380×g, increment:10×g |
| Speed Accuracy | ±20 rpm |
| Rotor Capacity | 5mL×18, 5mL culture tubex12 0.2mL/0.5mL/1.5mL/ 2mL×24, 0.5mL×36, PCR8×4 |
| Run Time | 30sec-99min/Continuous |

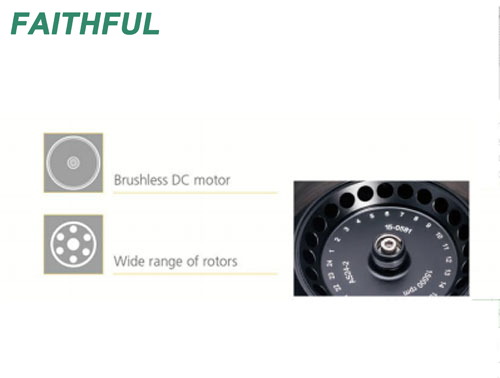

| Motor | Brushless DC motor |
| Safety Devices | Dual door interlock, Over-speed detection, Over-temperature detection, Automatic internal diagnosis |
| Power | Single-phase, AC220V-240V, 50Hz/60Hz, 5A, AC110V-120V, 50Hz/60Hz, 8A 200W |
| Acceleration /Braking time [Sec] |
25s↑25s↓ |
| Dimension [D×W×H] | 280×364×266mm |
| Weight | 12kg |
| Certification | CE cTÜVus FCC MCA |
| Advanced Features | Speed/RCF switch; Short-time run function; sound-alert function |
